Scanning Electrochemical Microscope (SECM)

Equipment Info

Equipment Code : 2311929

Make : Sensolytics/ Metrohm

Model : "Sensolytics Base SECM Artikel-Nr. 03-00001 with Metrohm Autolab Multi M204"

Institution : Indian Institute of Science Education and Research (IISER) Bhopal

Department : Chemical Engineering

Funding Agency Details : DST, Govt. of India

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

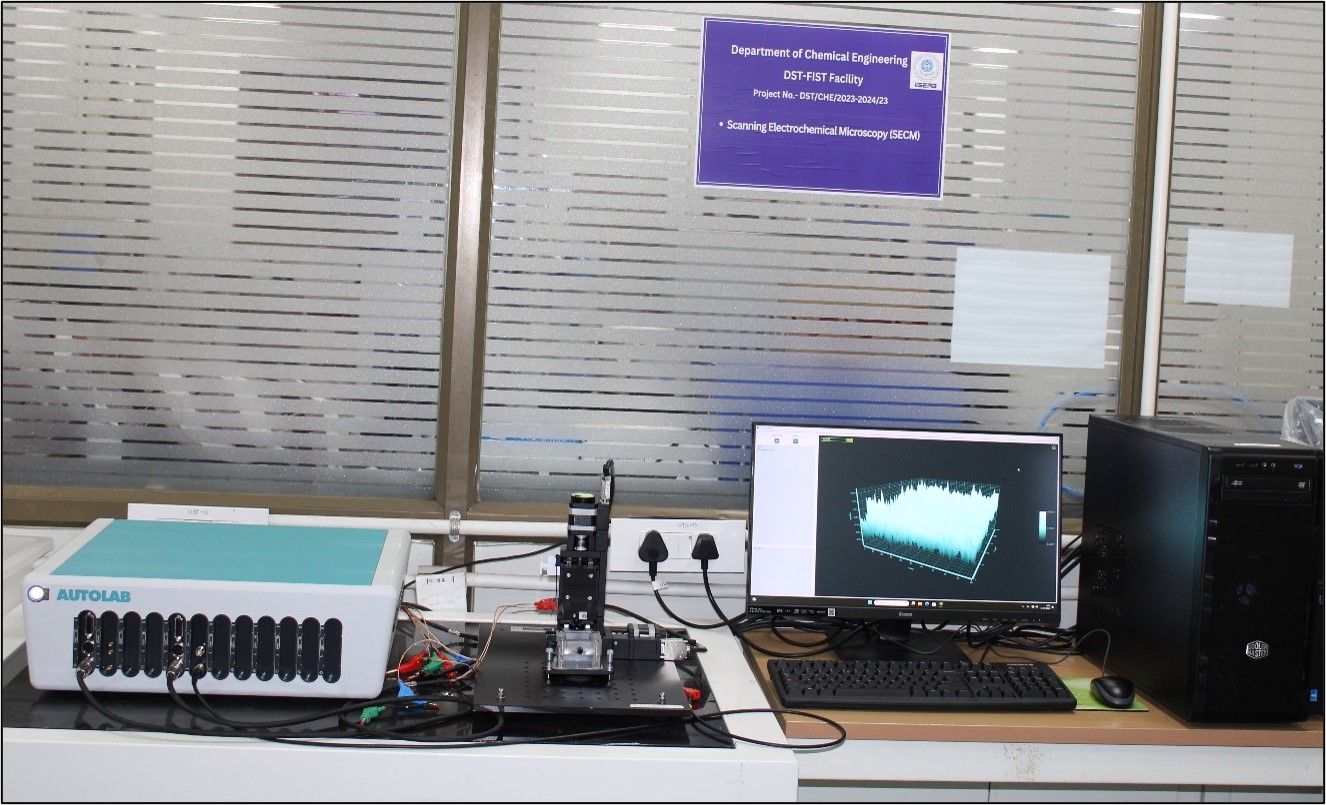

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) : No

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) : No

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : The SECM Base System is a high-resolution Scanning Electrochemical Microscope designed for mapping surface reactivity by measuring electrochemical currents. It is ideal for electrochemistry and materials science research requiring precise surface characterization. The system includes a stepper motor-controlled XYZ positioning stage (25 × 25 × 25 mm travel, 20 nm resolution), Pt microelectrodes (10 µm and 25 µm), reference and counter electrodes, and an industrial PC with TFT display, keyboard, and mouse for complete system control. It is optimized for scanning relatively flat surfaces using electrodes with diameters ranging from 10–100 µm.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Scan Area: 2000 µm
Scan Area: 1000 µm
Scan Area: 500 µm
Scan Area: 100 µm

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
