Equipment Info

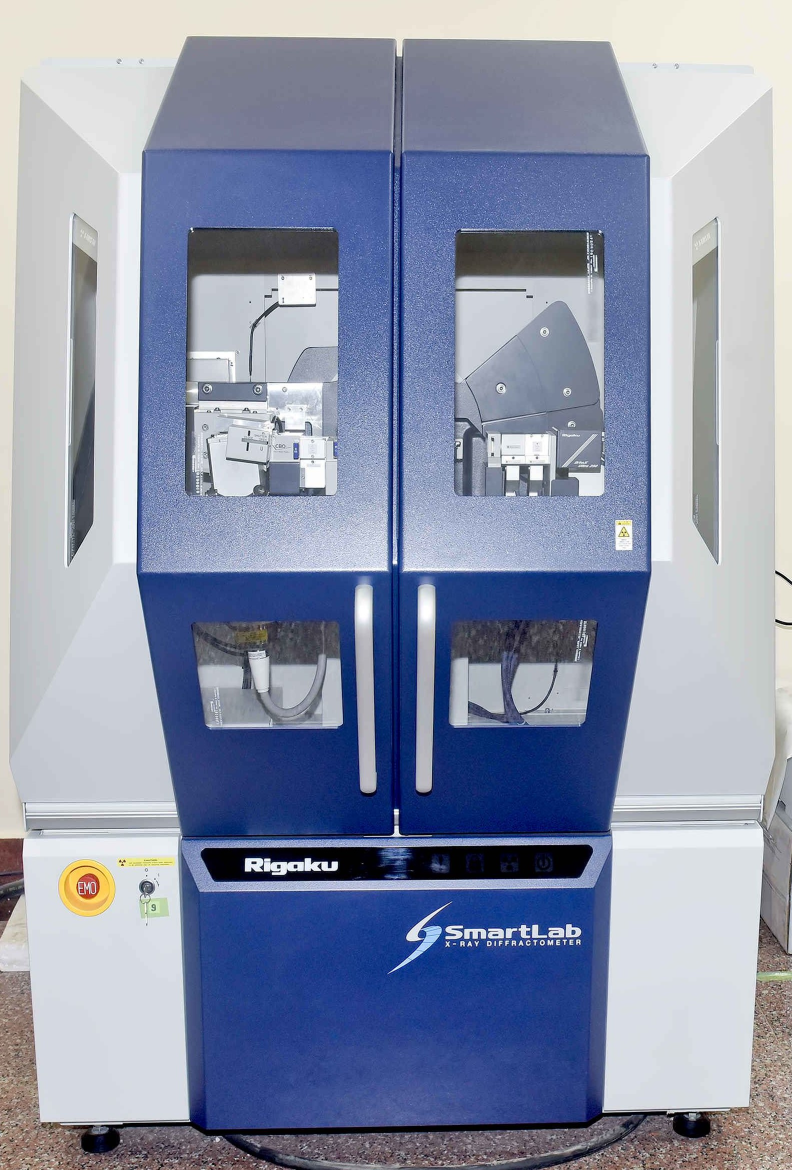

X-ray Diffractometer

Equipment Info

Equipment Code : 2014382

Make : Rigaku

Model : Smartlab Studio II

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1
slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : The Rigaku Smartlab is a multipurpose high resolution x-ray diffractometer (HRXRD) automated with guidance software (SmartLab Studio II). The XRD is equipped with a Monochromator in the diffracted beam side. The Converging Beam Optics (CBO) technology is used for fully automated beam alignment for various XRD applications, namely, powder diffraction, thin film metrology, SAXS (polymers and gels), in-plane scattering, micro diffraction, capillary measurement, texture and pole figure, X-ray reflectometry. SmartLab Studio II has an intelligent user guidance functionality that guides the operator through the intricacies of each XRD measurement. The software is also capable to perform automated phase/composition identification, qualitative and quantitative analysis, residual stress analysis, Rietveld analysis, thin-film analysis, etc.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Powder Diffraction (per hour)
Residual Stress Measurement(per hour)
GI-XRD (per hour)
Texture Measurement (per hour)
SAXS (per hour)
Capillary XRD (per hour)
Capillary XRD (per hour)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
