Equipment Info

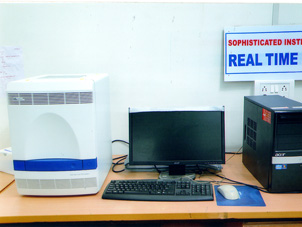

Real Time Polymerase Chain Reaction (RTPCR)

Equipment Info

Equipment Code : 2329565

Make : Life Technologies Holding Pte Ltd Singapore

Model : 4351104

Institution : Dr Harisingh Gour Vishwavidyalaya Sagar

Department : Centre For Advanced Research

Funding Agency Details : DST, Govt. of India

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1
slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Thermal Cycling System Peltier-based system Block Format 96-well block (Fast) Compatible Consumables 96-well plates (Fast) and 0.1 mL tube strips Supported Volumes 10–30 ?L Sample Ramp Rate • Fast Mode: +/- 3.5°C/sec • Standard Mode: +/-1.6°C/sec • 9600 Emulation Mode: +0.8 and -1.6°C/sec Peak Block Ramp Rate 5.5°C/sec Temperature Range 4°C-100°C Temperature Accuracy +/-0.25°C (35°C to 95°C) of setpoint/display temperature, measured at 3 minutes after clock start. Temperature Uniformity +/-0.50°C, 30 seconds after clock start. Optical System Tungsten-halogen lamp excitation source. Five-excitation filters, five-emission filters and CCD camera Calibrated Dyes at Installation SYBR® Green I, FAMTM, VICTM, JOETM, NEDTM, TAMRATM, ROXTM, Texas Red®, Cy3TM, Cy5TM Passive Reference Dyes ROXTM or any calibrated dye. Option exists to select no passive reference.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
RTPCR

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
