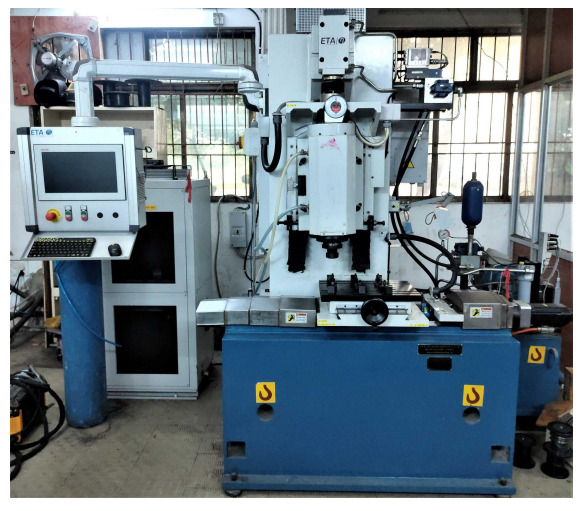

Friction Stir Welding Machine

Equipment Info

Equipment Code : 2229779

Make : ETA Technology Pvt.Ltd.

Model :

Institution : Indian Institute of Technology (IIT) Bhilai

Department : Mechanical Engineering

Funding Agency Details :

Pooling of Equipment slot : No

AMC End Date (Valid Till) :

1 / 1

❮ ❯

PRISM Service Category (About PRISM) : A

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) : No

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) : No

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Friction Stir Welding (FSW) machine is a solid-state joining system that fuses metals without melting them. It uses a rotating non-consumable pin tool to generate frictional heat, mechanically intermix and soften the materials, and forge them together under high pressure. Specification: Spindle speed-3000 rpm Max., Spindle Torque-85Nm @ 1650rpm, Thrust load on spindle-40kN, Spindle Tilt angle-± 5° with least count of 0.5° manually operated., Axis Travel X-Axis-400 mm (Servo control), Y-Axis-70 mm manually operated, X Axis Thrust-6 Kn. Max.

Usage Rate: (as indicated by the custodian/host institution)

Samples	External Academic User	Internal Academic User	Industry User	Start-ups	National Research Lab User	Grassroot innovator
Welding of softer materials such as aluminum, magnesium etc .

Accessories / Consumables / Spare parts / Testing modes

Sample Name	Sample Type	Sample UOM	Sample Availability	Unit Cost	Sample Quantity	Sample Description
No Data Available
