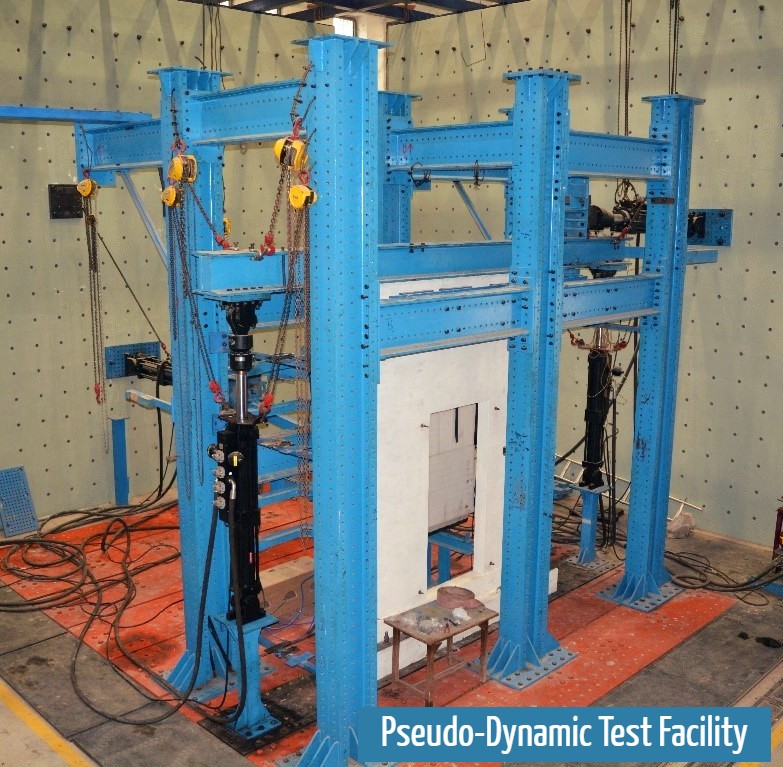

Pseudo Dynamic Structural Test System - (Servo Hydraulic Structural Test Facility )

Equipment Info

Equipment Code : 530123

Make : Moog Motion Controls Pvt Limited Bangalore, India

Model : 100kN, 250kN, 500kN, 1000kN

Institution : Indian Institute of Technology (IIT) Roorkee

Department : Department of Earthquake Engineering

Funding Agency Details : DST and Institution

Pooling of Equipment slot : No

AMC End Date (Valid Till) : 17-Mar-2026

1 / 5

2 / 5

3 / 5

4 / 5

5 / 5

❮ ❯

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

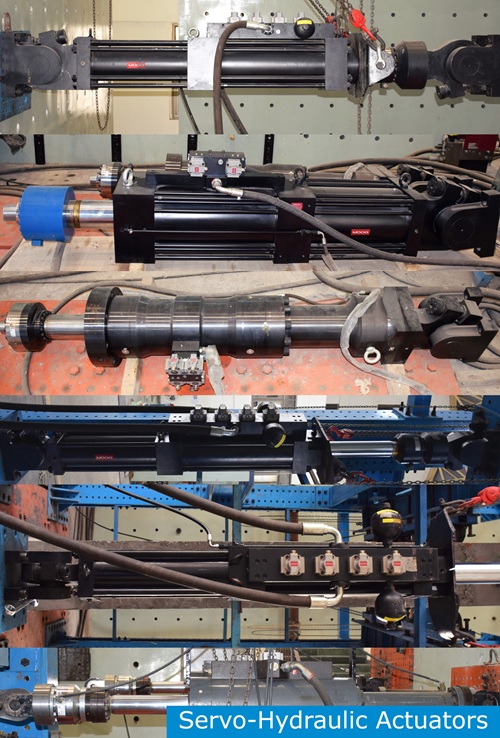

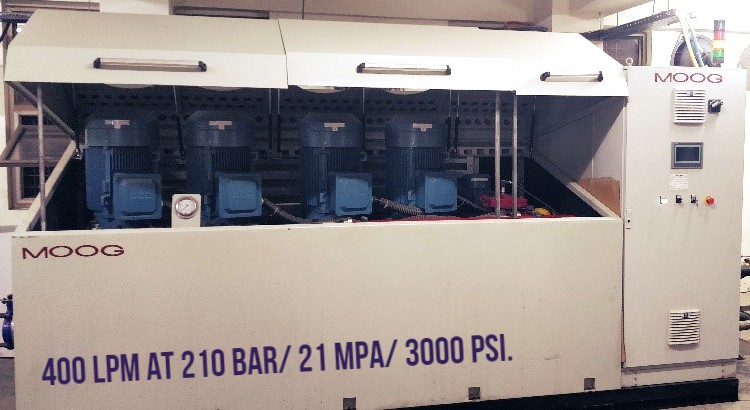

Description : The Servo-Hydraulic Test Facility is equipped with high-performance linear servo-controlled hydraulic actuators of capacities 100 kN, 250 kN, 500 kN, and 1000 kN, designed for precise static, cyclic, and dynamic testing. Each actuator is supplied with its respective digital electronics control unit and all necessary accessories to ensure accurate load, displacement, and deformation control. The facility includes 500 kN and 250 kN high-performance servo-controlled hydraulic actuators along with a hydraulic power unit (HPU), digital electronics controller, and advanced testing software for executing and monitoring experiments. Supporting components such as high-pressure, return, and drain/pilot hydraulic hoses, signal cables (30 m length each), and all required installation, commissioning, and warranty services are provided as part of the system. This integrated setup enables reliable and efficient experimental testing for structural, geotechnical, and material research applications.

Usage Rate: (as indicated by the custodian/host institution)

Samples	External Academic User	Internal Academic User	Industry User	Start-ups	National Research Lab User	Grassroot innovator
Servo Hydraulic Actuator - Structural Test System

Accessories / Consumables / Spare parts / Testing modes

Sample Name	Sample Type	Sample UOM	Sample Availability	Unit Cost	Sample Quantity	Sample Description
No Data Available
