PCB Prototype Making and Antenna Designing

Equipment Info

Equipment Code : 039168

Make : Malvern Panalytical

Model : Empyrean

Institution : SRM University AP Andhra Pradesh Guntur

Department : Electronics and Communication Engineering

Funding Agency Details : Institution Funding (Self Supported)

Pooling of Equipment slot : Yes

AMC End Date (Valid Till) :

1 / 1

❮ ❯

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

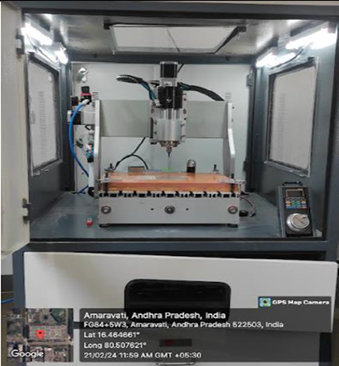

Description : PCB Prototyping & Antenna Fabrication System, Manual Software Copper CAM & Mach3 Mill Resolution (X/Y): 3.125 Micro Meter Working Area (X/Y/Z)(mm): 200x300x120 mm Minimum Width Line & Space in mm: 0.1 (4 mil) Max Travel Speed (mm/sec): 58 (2.28 “) Drilling (mm): 0.2 -3.175 (8-125 mil)

Usage Rate: (as indicated by the custodian/host institution)

Samples	External Academic User	Internal Academic User	Industry User	Start-ups	National Research Lab User	Grassroot innovator
Sample (Substrate cost not included)

Accessories / Consumables / Spare parts / Testing modes

Sample Name	Sample Type	Sample UOM	Sample Availability	Unit Cost	Sample Quantity	Sample Description
No Data Available
