Micro Raman Spectroscopy (CRF-RAMAN)

Equipment Info

Equipment Code : 2042232

Make : HORIBA Scientific, France

Model : LabRAM HR-UV-Open

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

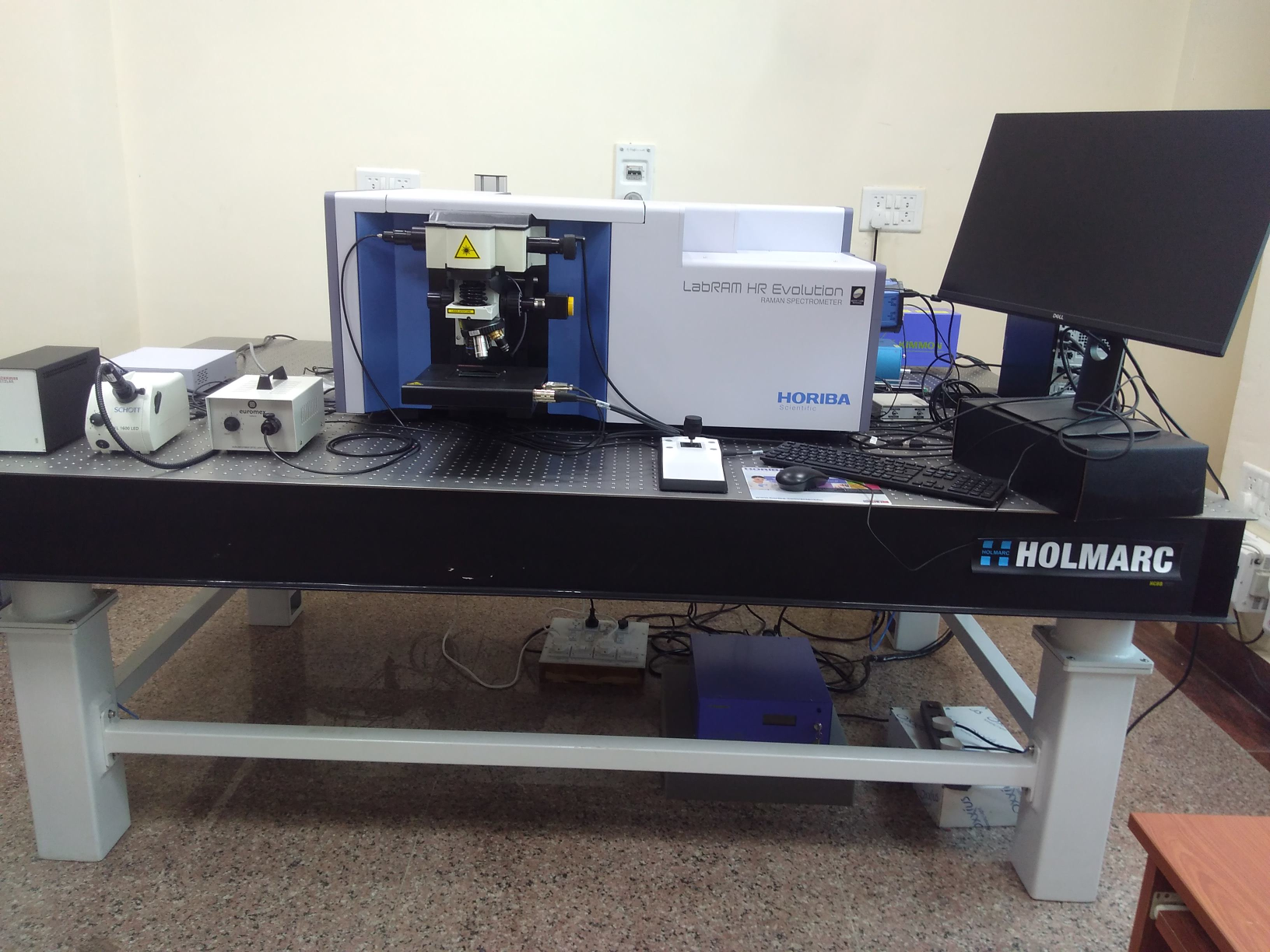

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Raman range: 50 cm-1 – 4000 cm-1; Spectral resolution: ~ 0.2 cm-1; Spatial resolution: 0.5 micrometer; Laser excitation wavelengths: 325 nm (He-Cd); 532 nm, 785 nm, and 976 nm; Photoluminescence measurements: 400-1000 nm; Objectives: 40X (NUV); 50X (LWD), 5X, 10X, 100X; 2D and 3D imaging with 0.01µm Z-resolution; Open Electrode CCD air-cooled to -60°C; Gratings: 600, 1800, 2400 g/mm. Note: A Maximum of 4 samples will be handled in One Hour Slot.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Raman Spectra-532 nm Laser (per hour)
Raman Spectra- 785 nm Laser (per hour)
Up Conversion Spectra -980 nm (per hour)
PL Spectra -325 nm Laser (per hour)
Raman Spectra-325 nm Laser (per hour)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
