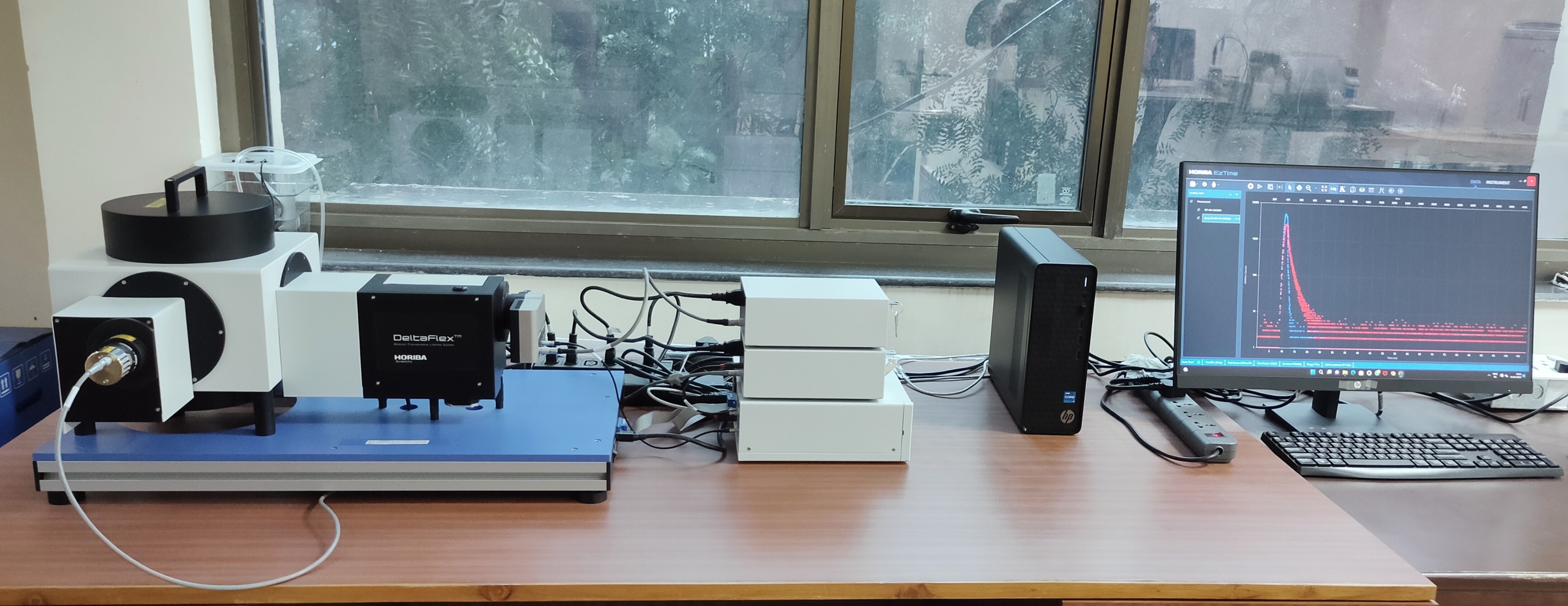

TCSPC Life Time Fluorometer (CRF-TCSPC)

Equipment Info

Equipment Code : 2042322

Make : HORIBA Scientific, France

Model : DeltaFlex

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1
slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Excitation Sources Pulsed LED: 270 ± 10 nm with typical pulse width < 1.5 ns, 295 ± 10 nm with typical pulse width < 1.5 ns, 340 ± 10 nm with typical pulse width < 1.5 ns, 455 ± 10 nm with typical pulse width < 1.5 ns; Pulsed Laser Diodes: 405 ± 10 nm with typical pulse width < 200 ps ; Sample Chamber and cuvettes: Cryostat compatible, Front face sample holder for thin film and solid samples; Emission Monochromator: Motorized emission monochromator; Detector: Fast, cooled, photomultiplier tube detector with range from 230-850 nm; Dark counts less than 100 cps; Anisotropy Accessory: Automated excitation and emission polarizers, compatible with the sample chambers; Variable Temperature Accessory: Peltier controlled cell holder with magnetic stirrer on quick interchange flange, Sample temperature -25 to +105 °C, Water coolant and gas purge required for low temperature operation.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
TCSPC (per hour)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
