Scanning Probe Microscope with Atomic Force Microscopy

Equipment Info

Equipment Code : 2042757

Make : Bruker Corporation

Model : Dimension Icon and MultiMode 8

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

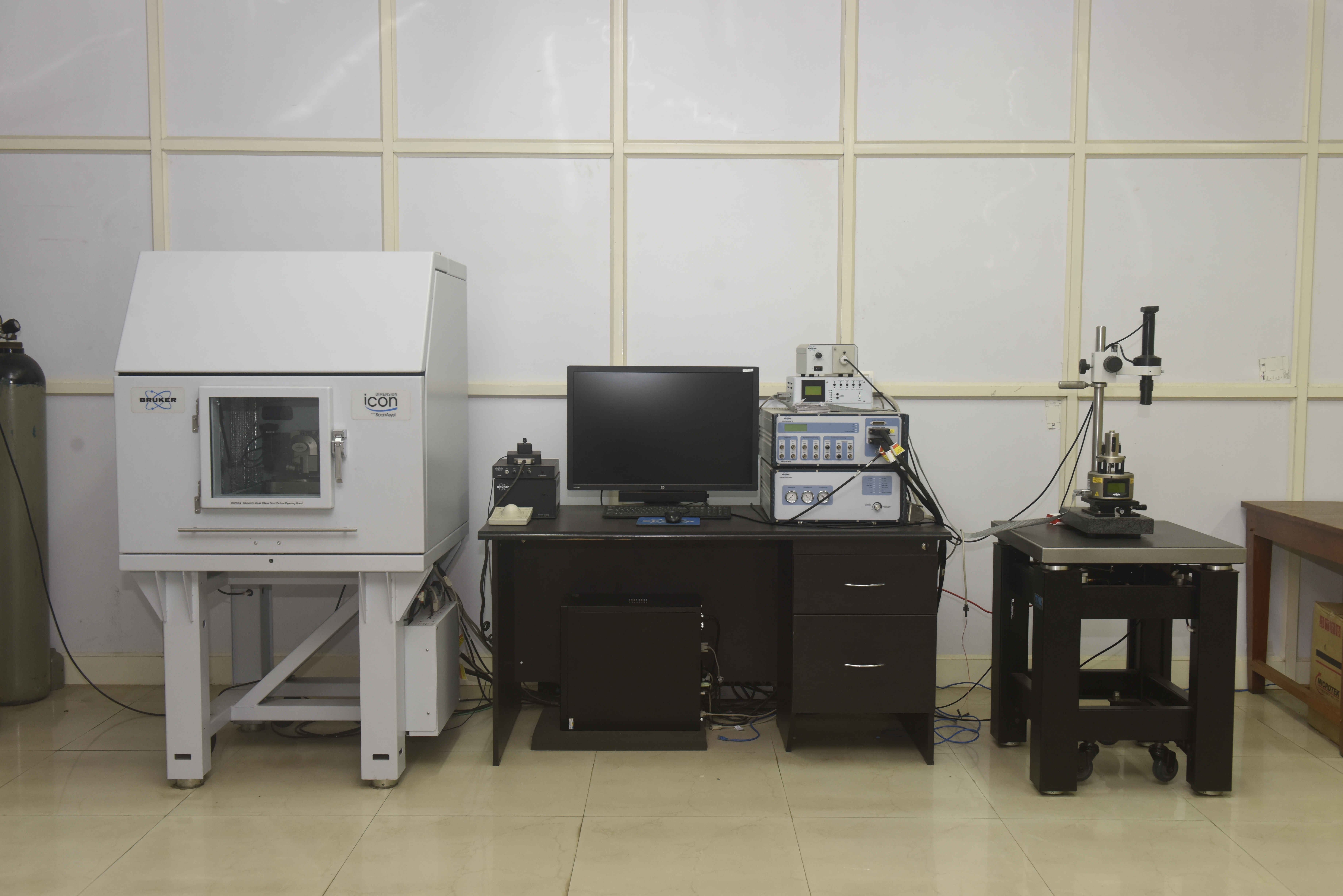

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Property Dimension Icon Multimode 8, Scan area: ? 90 ?m × 90 ?m ? 10 ?m × 10 ?m, Roughness (Z scale) variation: ? 10 ?m ? 2.5 ?m, Scanner nonlinearity: less than 0.5% less than 0.5%, Sample size (Diameter): ? 210 mm (with vacuum chuck) ? 15 mm, Sample size (Thickness): ? 15 mm ? 5 mm, Resolution(AFM)-Lateral 1 Å 1 Å, Resolution(AFM)-Spatial 0.5 Å 0.3 Å, Nanoindentation-Top : Berkovich type, Diamond Berkovich type, Diamond, Nanoindentation-Load : ? 260 ?N ? 260 ?N, Image size : ? 5120 pixel × 5120 pixel ? 5120 pixel × 5120 pixel, View Optics: Display and capture 180 ?m to 1465 ?m, 5 Mega-pixel 180 ?m to 1465 ?m, 5 Mega-pixel.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
AFM (per sample)
STM (per sample)
LFM (per sample)
MFM (per sample)
EFM (per sample)
Nano Indentation (per sample)
Nano Indentation (per sample)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
