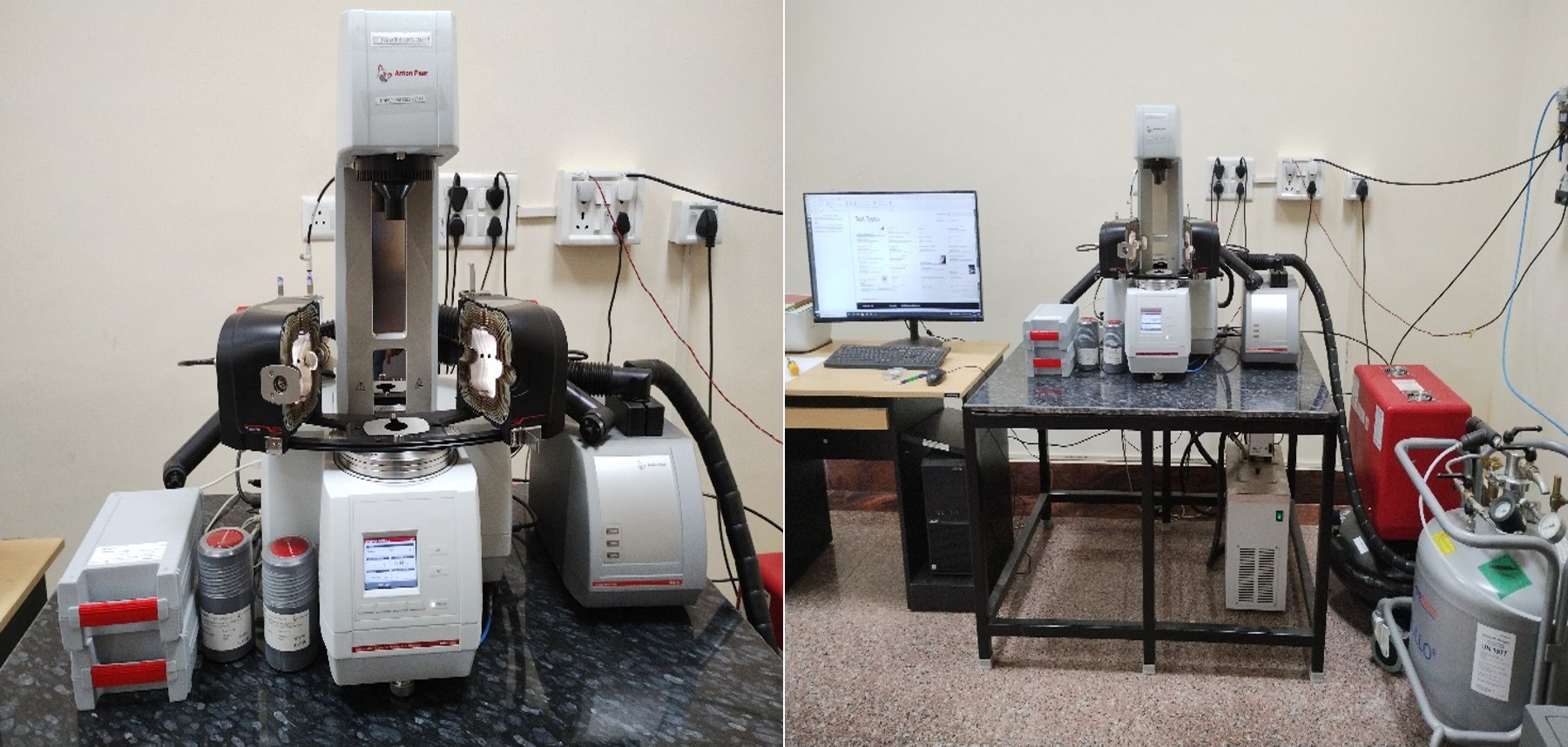

Dynamic Mechanical Analyzer (CRF-DMA)

Equipment Info

Equipment Code : 2042758

Make : Anton Paar, Germany

Model : MCR 702e MultiDrive

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1
slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Determination of material’s properties as a function of temperature, time, frequency, stress, atmosphere, or a combination of these parameters.An air-bearing-supported upper rotational and lower linear drive; The applied force range is 0.0005 N to 40 N, and the displacement range is 0.01 ?m to 9400 ?m; Operating Frequency range: 0.001 Hz to 100 Hz; Temperature limits: -160°C to 400°C; Maximum heating rate: 35 K/min; Maximum cooling rate: 30 K/min; For low-temperature environments, a nitrogen evaporation unit is available; Material choices for DMA: Polymers, Composites, Thermo-plastics, Fibers, Elastomers, Foams, Filled materials and Ceramics; The apparatus can work at a maximum torque of 230 mNm, and the minimum torque in oscillation is 0.5 nNm; The angular velocity of the upper rotational drive ranges from 0 rad/s to 314 rad/s with a wide range of angular deflection in ?rad; Maximum angular frequency: 628 rad/s.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Frequency/Temperature Sweep (per hour)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
