Equipment Info

Universal Testing Machine

Equipment Info

Equipment Code : 2042782

Make : INSTRON

Model : 8801

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

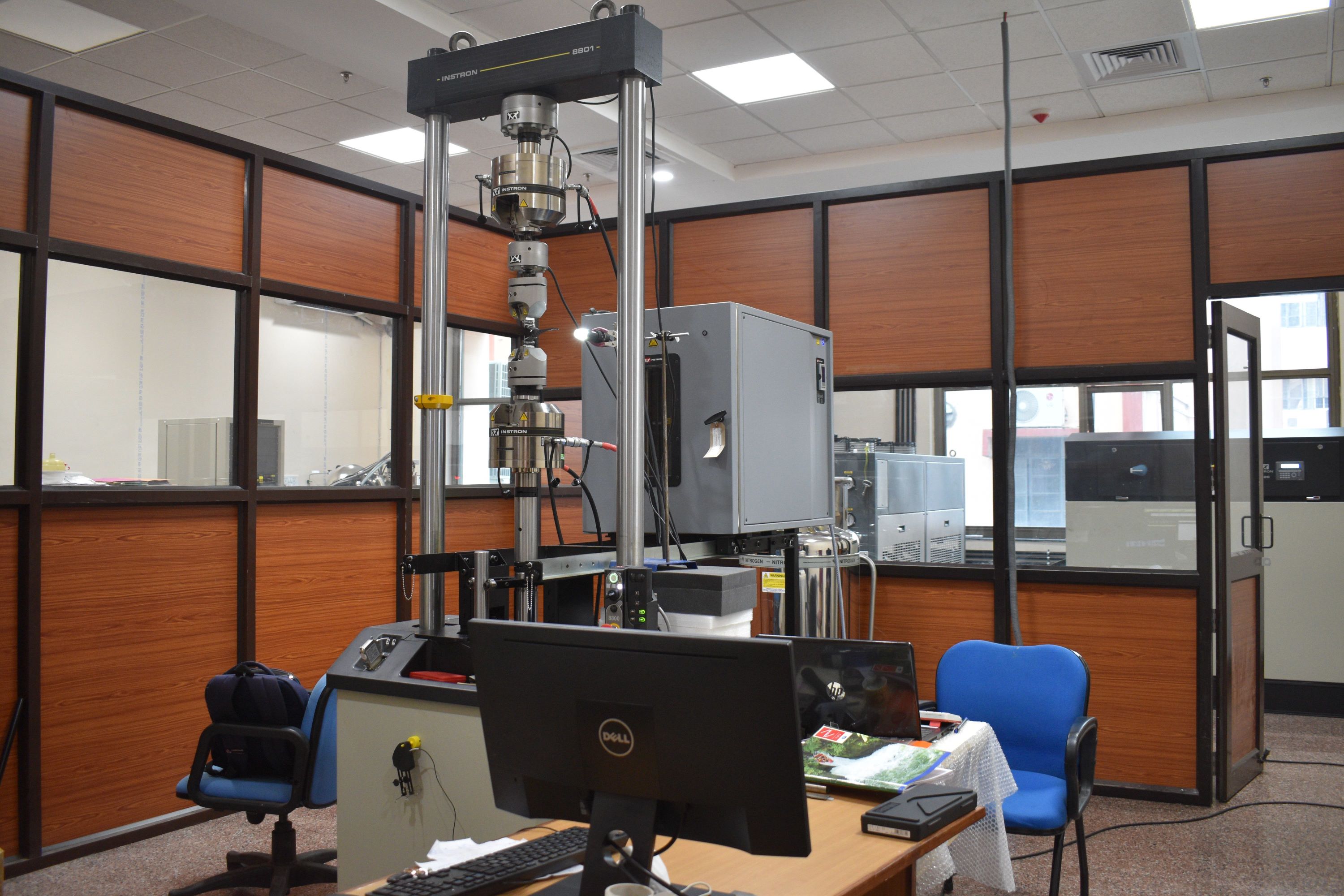

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Type of Machine: Servo-Hydraulic with Environment Chamber ( -100°C to 300 °C); Maximum Capacity: 100 kN; Type of Tests can be Performed : Tensile, Compression, 3-pt Bend, Stress controlled fatigue, Strain controlled fatigue, Fatigue crack growth rate (FCGR), Fracture toughness (KIC, JIC, CTOD); Available Load Cells: 100 kN and 10 kN; Types of Sample can be Tested: Round, Flat, Sheet, Wire, Rod or Tubular (Conforming ASTM standard); Crosshead Speed (Strain rate): Max:- 40 mm/min ,Min:- 0.05 mm/min; Crosshead Displacement: Max:- 150 mm; Type of Test Control: Position, Load and Strain; Type of Extensometers: Static extensometer with GL 25 mm (travel +25mm and -2.5mm), Dynamic extensometer with GL 12.5 mm (travel +5 mm and -5 mm), COD with 5 mm and 10 mm

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Room Temp tension/compression (per sample)
Simple tension tests with furnace from RT to 350C (per hour)
Stress controlled Fatigue test 10Hz or Higher (per sample)
Strain Controlled fatigue test 0.1Hz to 0.5Hz (per sample)
JIC/KIC Pre-cracking+testing (per sample)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
