Equipment Info

Creep-Fatigue Interaction Test (CRF-CFI)

Equipment Info

Equipment Code : 2042783

Make : INSTRON

Model : AC - 01 - 0010

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

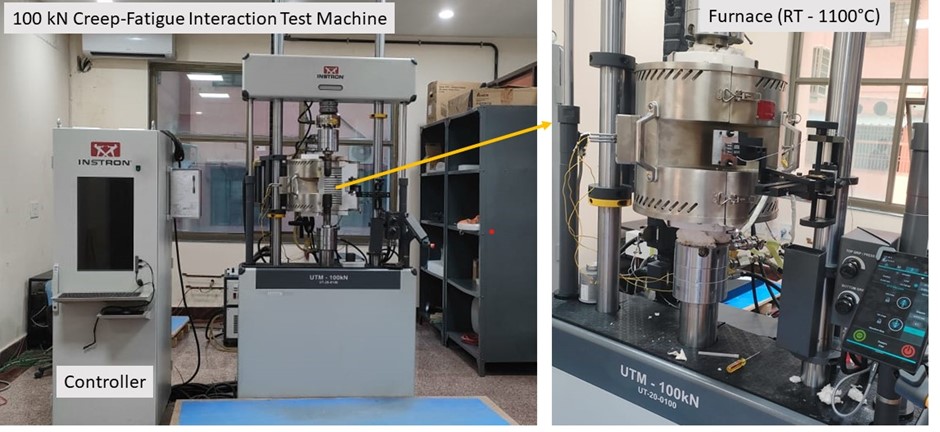

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Type of Machine: Servo-Electric with Furnace ( RT to 1050°C); Maximum Capacity: 100 Kn; Type of Tests can be Performed: Tensile, Stress controlled fatigue, Strain controlled fatigue, Creep- Fatigue interaction test; Types of Material can be Tested: Metallic, Polymer, and Composite; Available Load Cells: 100 kN and 10 kN; Types of Sample can be Tested: Round, Flat (Conforming ASTM standard); Frequency: Max:- 1 Hz, Min:- 0.005 Hz; Crosshead Displacement: Max:- 150 mm; Type of Test Control: Position, Load, and Strain; Type of Extensometers: Static HT extensometer with GL 25 mm (travel +12.5mm and -2.5mm), Static RT extensometer with GL 12.5 mm (travel +12.5mm and -3mm), Dynamic HT extensometer with GL 25 mm (travel +2.5 mm and -2.5 mm), Dynamic HT extensometer with GL 12.5 mm (travel +1.25 mm and -1.25 mm), Dynamic RT extensometer with GL 12.5 mm (travel +1 mm and -1 mm), Dynamic RT extensometer with GL 25 mm (travel +5 mm and -5 mm)

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Simple tension Test with a furnace from RT to 1050C(per sample)
High Temp Strain controlled fatigue test from RT to 1050C with 0.005Hz to 0.5Hz(per sample)
Creep Fatigue Interaction test from RT to 1050C with 0.005Hz to 0.5Hz(per sample)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
