Equipment Info

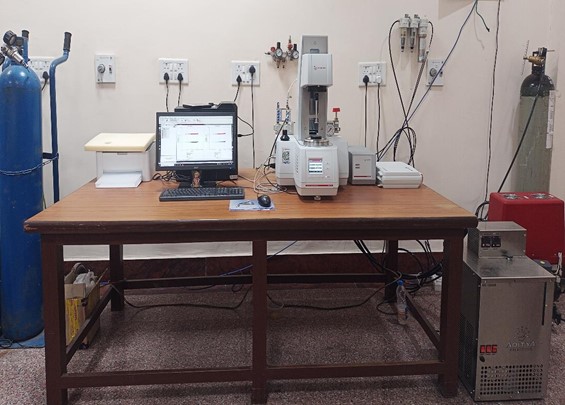

Modular Compact Rheometer (CRF-MCR)

Equipment Info

Equipment Code : 2042791

Make : Anton Paar, Austria

Model : MCR 302e

Institution : Indian Institute of Technology (Indian School of Mines) Dhanbad

Department : Central Research Facility

Funding Agency Details : Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1
slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Motor Bearing is Air Bearing; Measuring Head Type is Direct Current Synchronous Motor with Permanent Magnets on its Rotor or Drag Cup Motor; Torque Range: Min. Torque in Rotation is 1.00 nNm; Min. Torque in Oscillation is 0.6 nNm; Max. Torque is 220 mNm; Normal force measurement & resolution is up to 50 N & 0.01 N; Angular Velocity Range is 0 to 300 rad/s; Frequency Range is 10E-07 to 628 rad/s; Strain / Displacement Sensor is High Resolution Optical Encoder; Direct Strain Amplitude and Direct Stress Amplitude modes and Rotational, Oscillatory & Transient measurement types are available.

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Normal Rheology Analysis( per test)
High pressure & High Temp (per test)
Low temp using Liquid Nitrogen (per test)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
