Equipment Info

Mass Spectrometer -Liquid Chromatography Mass Spectrometry LC MS

Equipment Info

Equipment Code : 647899

Make : AB Sciex Pte Ltd Singapore

Model : SCIEX TripleTOF 5600 and 5600

Institution : Guru Jambheshwar University of Science and Technology Hisar

Department : Dr APJ Abdul Kalam Central Instrumentation Laboratory

Funding Agency Details : DST, Govt. of India

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

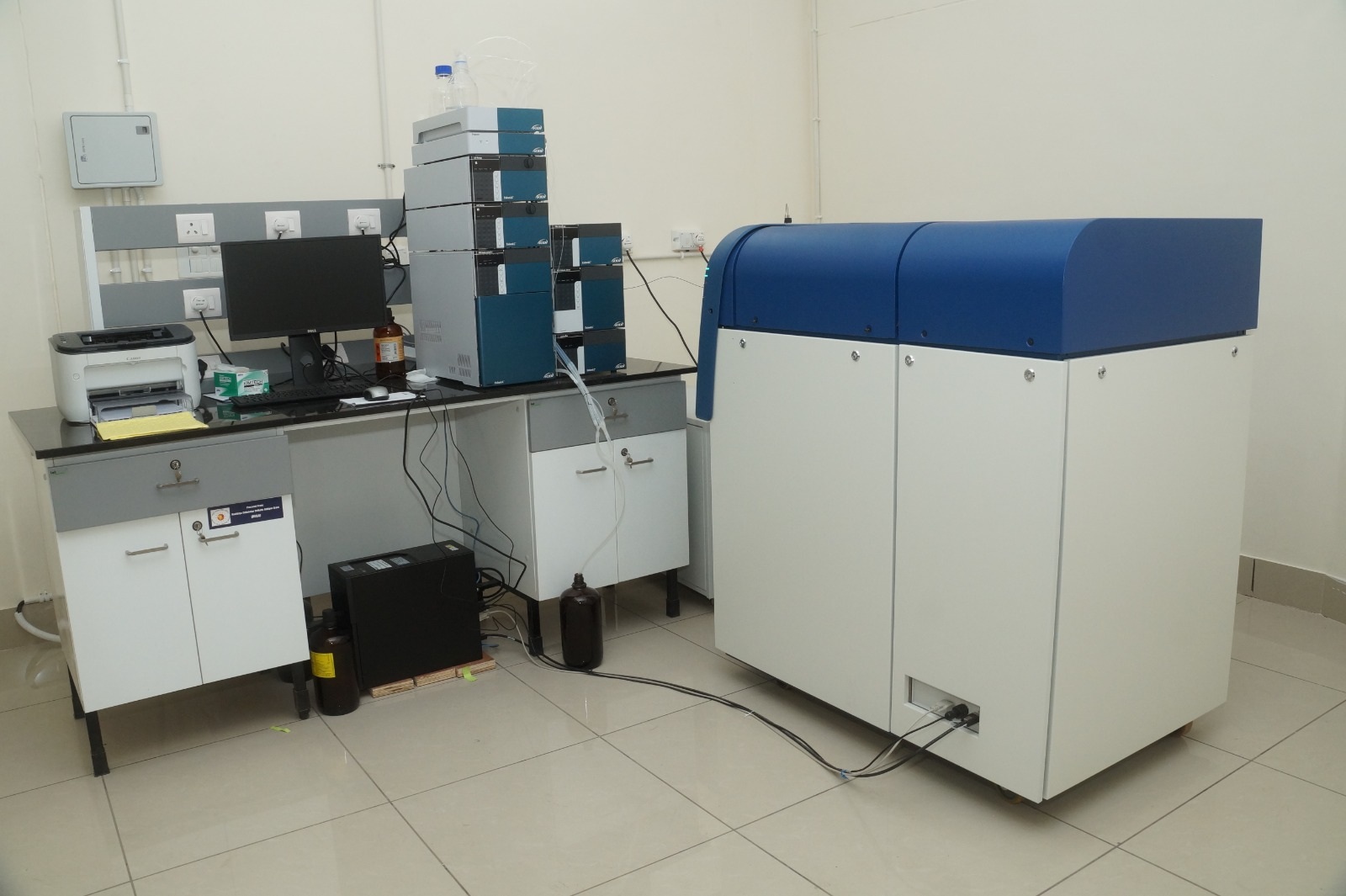

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Mass Spectrometer Ion Source -ESI and APCI -Positive and Negative Ionization Capabilities -De-solvation temperature upto750 oC Mass Analyzer -High Resolution Quadrupole Analyzer and collision cell Time of Flight Mass Analyzer Precursor ion slection 5-1250 m/z (Quadrupole) Mass range 40kDa (TOF) Acquisition Rate-IDA upto 100 Hz Mass Resolution-35000 (FWHM) at m/z 956 using 10ms acquisition time Mass Accuracy-Internal < 0.5 ppm RMS, External < 2ppm RMS Sensitivity-MS/MS Mode Reserpine 200 fg on column S/N:>60:1 UPLC System Solvent Delivery System-Binary Gradient Pump, Pressure rating 1300 bar 5-channel inline degasser Flow rate setting 0.0001 to 3 mL/min Autosampler with 105 vial capacity Column Oven-Temperature Range : ambient to 150oC PDA/DAD Detector-Wavelength Range: 190-700 nm Accuracy < 1 nm

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
HRMS (-ve/+ve mode)
MS/MS (-ve/+ve mode)
LC- HRMS [method to be provided](-ve/+ve mode) <15 min
LC- HRMS [method to be provided](-ve/+ve mode) >15 min
LC- MS/ MS [qualitative analysis, either-ve or +ve mode, <15 min]
LC- MS/ MS [qualitative analysis, either-ve or +ve mode, >15 min]
LC-HRMS Method Development

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
