Equipment Info

FT NMR Spectrometer

Equipment Info

Equipment Code : 647900

Make : Bruker BioSpin AG Switzerland

Model : AVANCEIII 400MHz

Institution : Guru Jambheshwar University of Science and Technology Hisar

Department : Dr APJ Abdul Kalam Central Instrumentation Laboratory

Funding Agency Details : UGC Grant

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

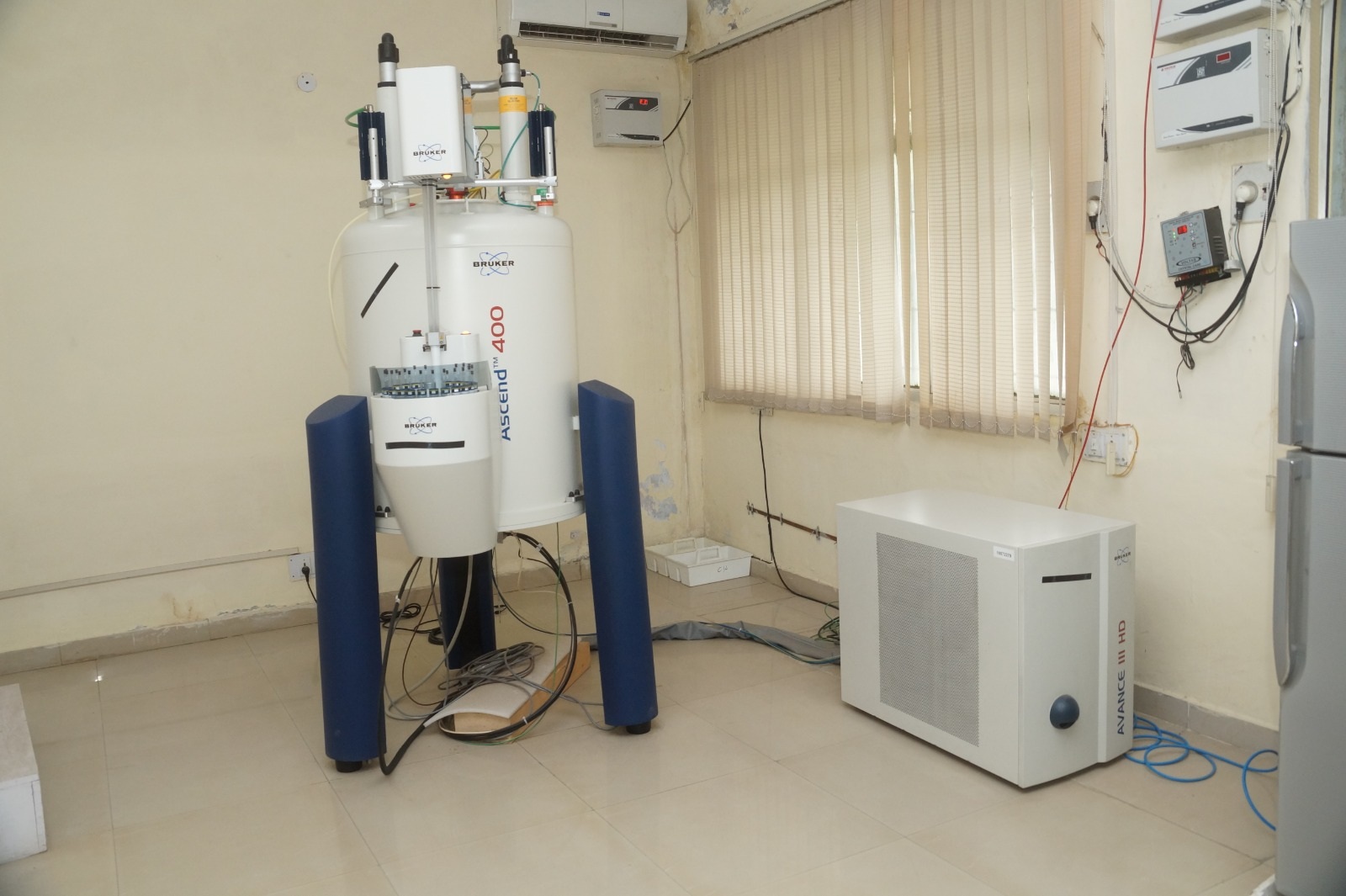

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Magnet Type: Superconducting magnet, actively shielded; Field Strength: 9.4 Tesla; Frequency: 400 MHz for 1H; Bore Size: 54 mm; Stability: Field drift ? 0.1 ppm/hour; Helium Holding Time: 9 months; Nitrogen Holding Time: >16 days. FT Console High-performance, digital control and acquisition system; directional connection with linear amplification and highly flexible acquisition for superior performance at high resolution. Receiver/Digital Receiver Amplifier High-bandwidth receiver capable of simultaneous detection of multiple nuclei, including 1H, 13C, 15N, 19F, and 31P. Provides pulse shaping, quadrature detection, and high dynamic range for optimized experiments in liquid state NMR. Pre-amplifier Unit Low-noise GaAs design broadband preamplifier with standard filters for lock and high-resolution measurements, optimized for both proton and heteronuclear detection. Gradient Accelerated Spectroscopy Actively shielded Z-gradient system for generation of 30 Gauss/cm or better gradien

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
H1/H2 /F19/Si29 /P31 D2O Exchange in CDCl3 (24 scan)
H1/H2 /F19/Si29 /P31 D2O Exchange in CDCl3 (25-56 scan)
H1/H2 /F19/Si29 /P31 D2O Exchange in CDCl3 (57-120 scan)
H1/H2 /F19/Si29 /P31 D2O Exchange in DMSO-d6 (24 scan)
H1/H2 /F19/Si29 /P31 D2O Exchange in DMSO-d6 (25-56 scan)
H1/H2 /F19/Si29 /P31 D2O Exchange in DMSO-d6 (57-120 scan)
C13 /Sn119 in CDCl3 (1500 scan)
C13 /Sn119 in CDCl3 (1501-2000 scan)
C13 /Sn119 in CDCl3 (2001-2500 scan)
C13 /Sn119 in DMSO d6 (1500 scan)
C13 /Sn119 in DMSO d6(15001-2000 scan)
C13 /Sn119 in DMSO d6 (2001-2500 scan)

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
