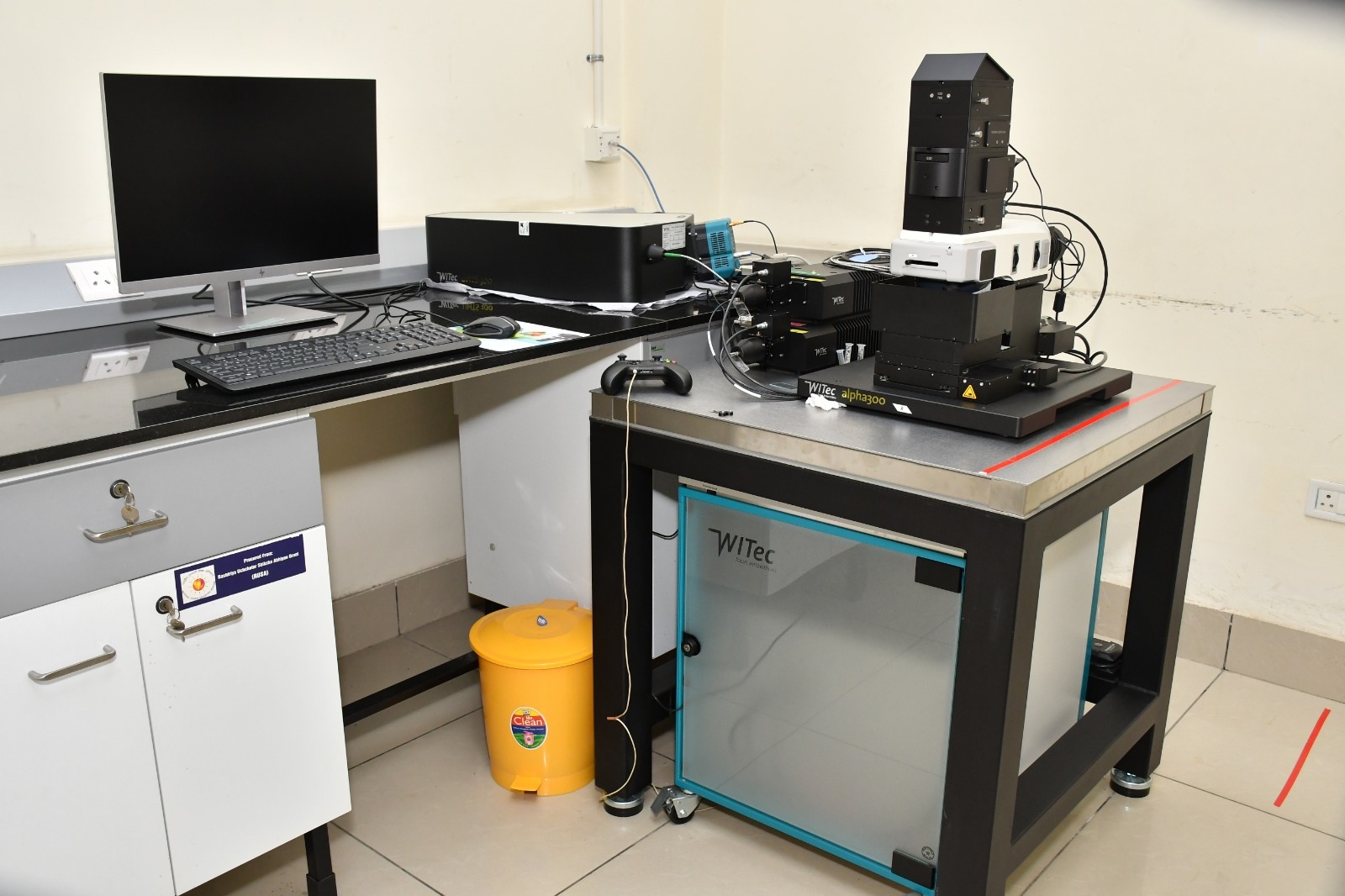

Confocal Raman Microscope

Equipment Info

Equipment Code : 647901

Make : Ms WITec GmbH Germany

Model : Alpha 300R

Institution : Guru Jambheshwar University of Science and Technology Hisar

Department : Dr APJ Abdul Kalam Central Instrumentation Laboratory

Funding Agency Details : DST, Govt. of India

Pooling of Equipment slot : No

AMC End Date (Valid Till) :

1 / 1

❮ ❯

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Spectral Range -200-2200 nm Spectral Resolution (FWHM) -<0.5 cm-1 Spatial Resolution -< 300 nm @532 nm Laser -< 750 nm @532 nm Laser Scan to Scan repeatibility -<0.05 cm?¹ Gratings-600 gr/mm -1200 gr/mm -2400 gr/mm Edge Filters-50 cm-1 for 532 and 785 nm lasers Laser -Air cooled, Diode Laser 532 nm 75mW -Air cooled, Diode Laser 785 nm 120mW Confocal Microscope -Research Grade Zeiss Microscope with 6 turret -Coupled with spectrometer through single mode Fiber Coupling -Motorized stage controlled by Joystick -Coupled with camera for sample visualization and digital video Detector -Thermoelectrically cooled CCD Camera, Peltier cooling, Quantum Efficiency 55%

Usage Rate: (as indicated by the custodian/host institution)

Samples	External Academic User	Internal Academic User	Industry User	Start-ups	National Research Lab User	Grassroot innovator
Line Spectra
2D imaging
3D Imaging

Accessories / Consumables / Spare parts / Testing modes

Sample Name	Sample Type	Sample UOM	Sample Availability	Unit Cost	Sample Quantity	Sample Description
No Data Available
