Equipment Info

Ultra High Performance Liquid Chromatography

Equipment Info

Equipment Code : 647903

Make : Ms Shimadzu Asia Pacific Pte Ltd Singapore 118264

Model : Nexera 2 UHPLC

Institution : Guru Jambheshwar University of Science and Technology Hisar

Department : Dr APJ Abdul Kalam Central Instrumentation Laboratory

Funding Agency Details : RUSA, Govt. of India

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :

1 / 1

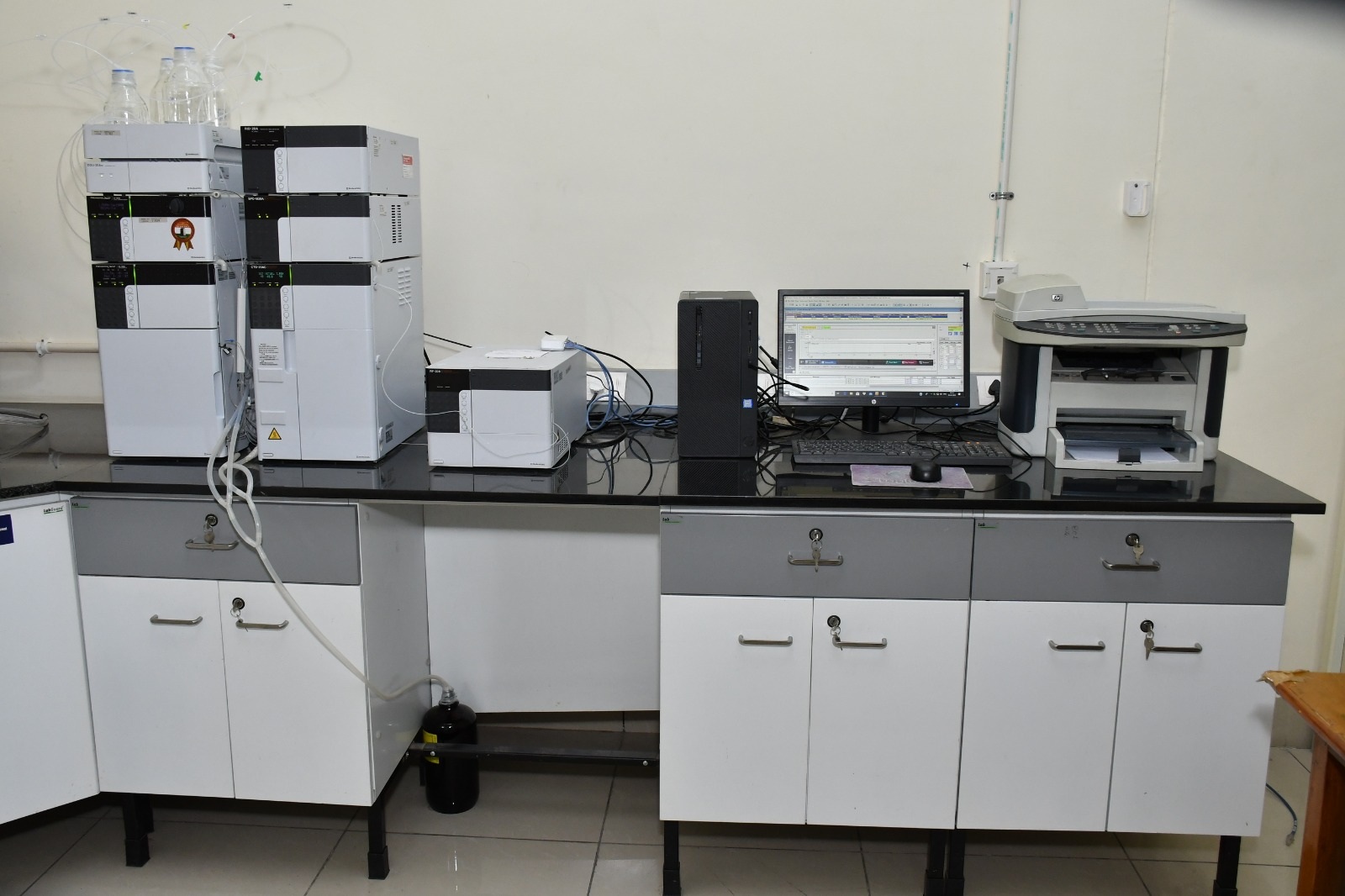

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Solvent Delivery System(LC-30AD) Type of Pump-Ultra High-Pressure Quaternary Gradient System Flow rate-0.001 to 3 mL/min in 0.001 mL/min increments Flow rate accuracy - ±1 % Flow rate Precision - ± 0.06% RSD Maximum Pressure Setting range-18000 psi Degasser- Membrane Degassing Injection System Type-Auto Sampler with cooler Sampler injection Volume setting range -0.1 to 50 µL Temperature Setting range-4ºC to 40ºC Carry over-<0.0015% Injection precision-0.25% of RSD Column Oven Temperature range -10º degree below room temp to 85ºC Temperature control precision -± 0.1 ºC Temperature accuracy - ± 0.5 ºC Detector PDA- Wavelength: 190-800 nm Flow Cell Volume: 2.5 µL Flow Cell Path Length 5 mm Wavelength Accuracy : ±1nm Linearity : 2.0 AU Base line noise 06x10-6 Au at 230 nm Drift ;?5.0x10-4/AU/Hr/?C Spectrofluorometric Detector-Wavelength : 200 - 650nm Wavelength accuracy: +/- 2nm. Light source: Xenon lamp Scanning of Samples Sensitivity: Water Raman peak 1200 S/N Spectral Band

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
Quantitative analysis per sample (<15 min run )((ref std to be provided)
Quantitative analysis per sample (15-30 min run )((ref std to be provided)
Quantitative analysis per sample (31-60 min run )((ref std to be provided)
Method Development

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
