Equipment Info

Field Emission Scanning Electron Microscope FESEM

Equipment Info

Equipment Code : 2948419

Make : CarlZeiss

Model : Ultra Plus

Institution : Raman Research Institute (RRI) Bengaluru

Department : SCM

Funding Agency Details : DST

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :  31-Jan-2025

1 / 1

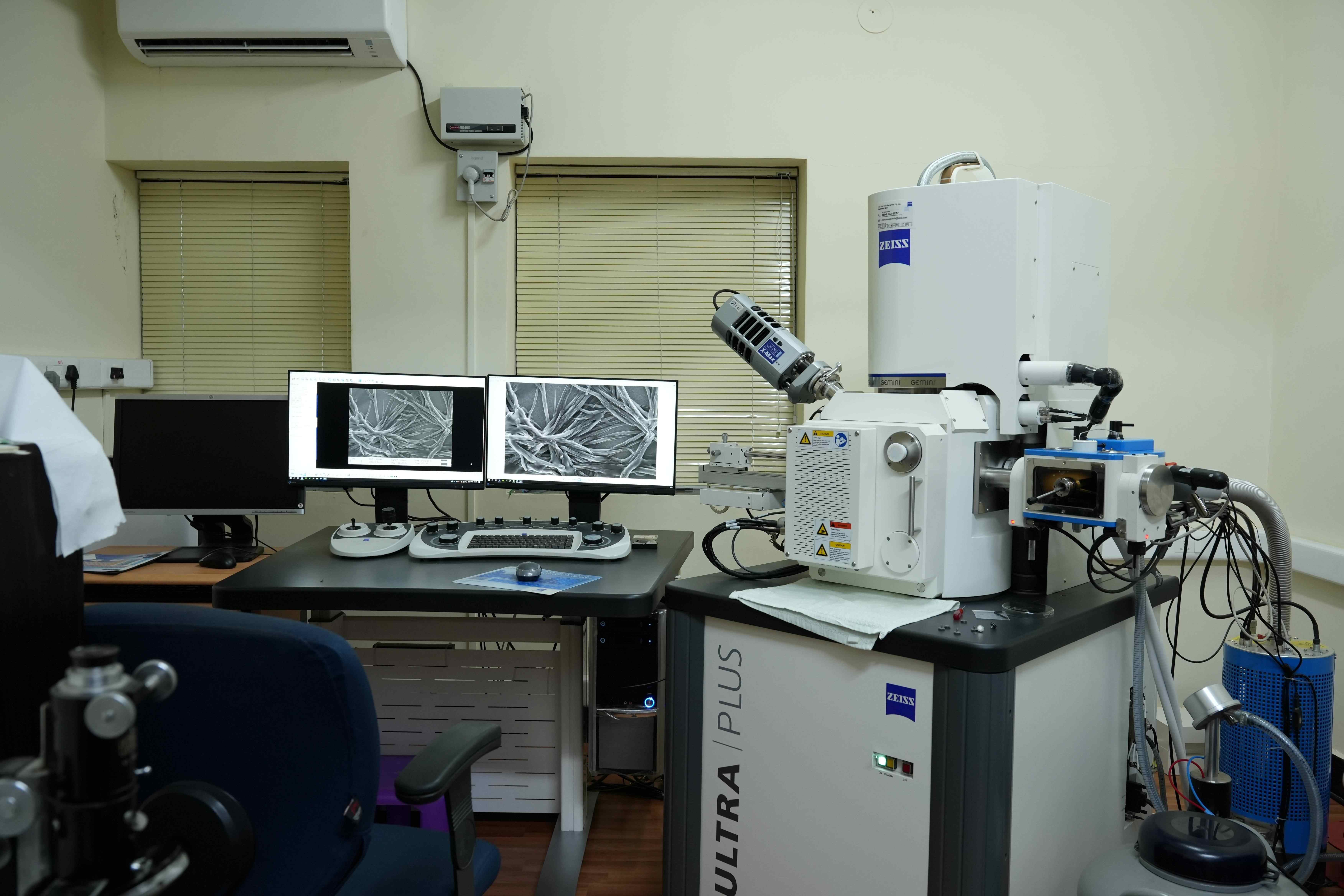

slideshow image

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

Description : Features and Specification: 1.Acceleration voltage: 0.1-30 kV 2.Resolution: 1.0 nm/15 kV, 1.7 nm/ 1 kV, 4.0 nm/0.1 kV 3.Detectors: Two SE, BSE and STEM 4.Additional Imaging Options: Cryo-FESEM, Energy Dispersive X-Ray Spectroscopy – EDS, Scanning Transmission Electron Microscopy–STEM and Imaging with Hot Stage 5.FESEM Samples should be dried, conducting and coated on a conducting substrate. 6.Cryo-SEM samples can be either in gel or liquid state

Usage Rate: (as indicated by the custodian/host institution)


Samples External Academic User Internal Academic User Industry User Start-ups National Research Lab User Grassroot innovator
FESEM
Au/Pt COATING
EDX

Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
