High-Performance Thin-Layer Chromatography-HPTLC

Equipment Info

Equipment Code : 550626

Make : CAMAG

Model : CAMAG TLC Scanner 4

Institution : Hemvati Nandan Bahuguna Garhwal University (HNBGU) Garhwal

Department : Chemistry

Funding Agency Details : UGC-SAP

Pooling of Equipment slot : No

AMC End Date (Valid Till) :

1 / 5

2 / 5

3 / 5

4 / 5

5 / 5

❮ ❯

PRISM Service Category (About PRISM) : D

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) :

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) :

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

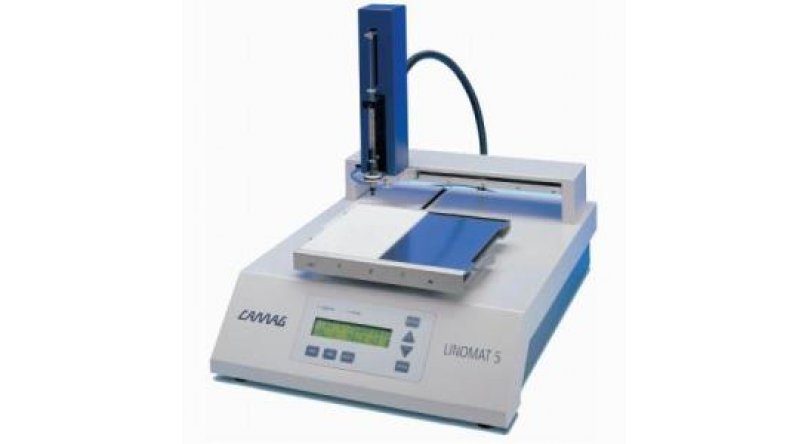

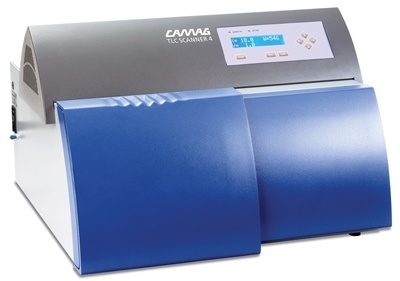

Description : 1. CAMAG SCANNER 4 + Linomat 5 System Purpose: Quantitative evaluation of HPTLC chromatograms Function: Performs densitometric scanning of developed TLC/HPTLC plates. Wavelength Range: 190–900 nm (UV–Visible) Light Sources: Deuterium lamp (UV), Tungsten lamp (Visible) 2. CAMAG LINOMAT 5 Purpose: Semi-automated sample application on HPTLC plates Function: Applies precise bands or spots of sample solutions using a syringe and spray-on technique. Sample Application: Contact-free, nitrogen-aided spraying Volume Range: 100 µL – 5000 µL per application Syringe Sizes: 10 µL, 25 µL, 100 µL options Plate Size Compatibility: 20 × 10 cm or 10 × 10 cm HPTLC plates Software: Controlled via WinCATS software (same as the Scanner 4)

Usage Rate: (as indicated by the custodian/host institution)

Samples	External Academic User	Internal Academic User	Industry User	Start-ups	National Research Lab User	Grassroot innovator
HPTLC

Accessories / Consumables / Spare parts / Testing modes

Sample Name	Sample Type	Sample UOM	Sample Availability	Unit Cost	Sample Quantity	Sample Description
No Data Available
