Equipment Info

DESE UV-VIS-NIR Facility

Equipment Info

Equipment Code : 2762350

Make : Jasco

Model : Jasco V770

Institution : Indian Institute of Technology (IIT) Bombay

Department : Department of Energy Science and Engineering

Funding Agency Details : DST and Institution

Pooling of Equipment slot :   No

AMC End Date (Valid Till) :  06-Oct-2027

PRISM Service Category (About PRISM) : A

Pre-Experiment Support (including sample preparation, setup assistance and pre-experimental guidance) : Sample details, measurement range, and R/T characterization requirements

Post-Experiment Support (including result interpretation, data analysis and post-experimental reporting) : Interpretation of results and report generation

Equipment Certification (if any) (No document available):

Equipment Calibration (if any) (No document available):

Remarks / Special Instructions (if any):

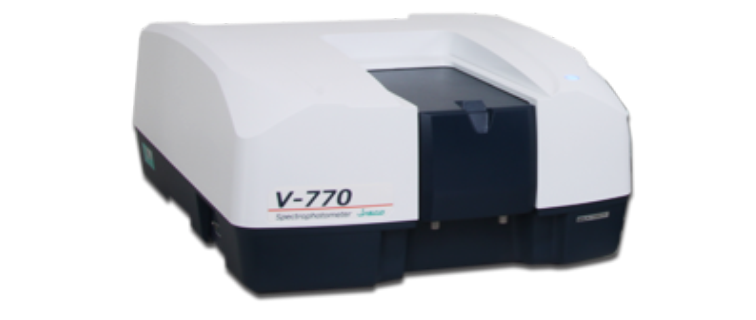

Description : The JASCO V-770 UV-Vis-NIR Spectrophotometer is a high-performance double-beam spectrophotometer designed for optical characterization across the ultraviolet, visible, and near-infrared spectral regions, typically covering a wavelength range from about 190 nm to 2700 nm. It combines a photomultiplier tube detector for the UVā€“visible region with a cooled PbS detector for the NIR region, enabling sensitive measurements over a very broad spectrum in a single instrument. The system supports transmission, absorbance, reflectance, diffuse reflectance, and integrating sphere measurements, making it suitable for applications such as thin films, coatings, semiconductors, powders, liquids, nano particles, solar materials, and optical components. Its double-beam design improves baseline stability and reduces drift, while interchangeable accessories such as integrating spheres, temperature-controlled holders, polarizers, and automated sample stages allow flexible experimental configurations for bo

Usage Rate: (as indicated by the custodian/host institution)

S.No. Users Category Rate (unit ) & (In Rupees)
1 Academic (External)*
2 Academic (Internal)***
3 Grassroot innovator
4 Industry User
5 National Research Lab User
6 Startup/MSME User


Accessories / Consumables / Spare parts / Testing modes

Sample Name Sample Type Sample UOM Sample Availability Unit Cost Sample Quantity Sample Description
No Data Available
